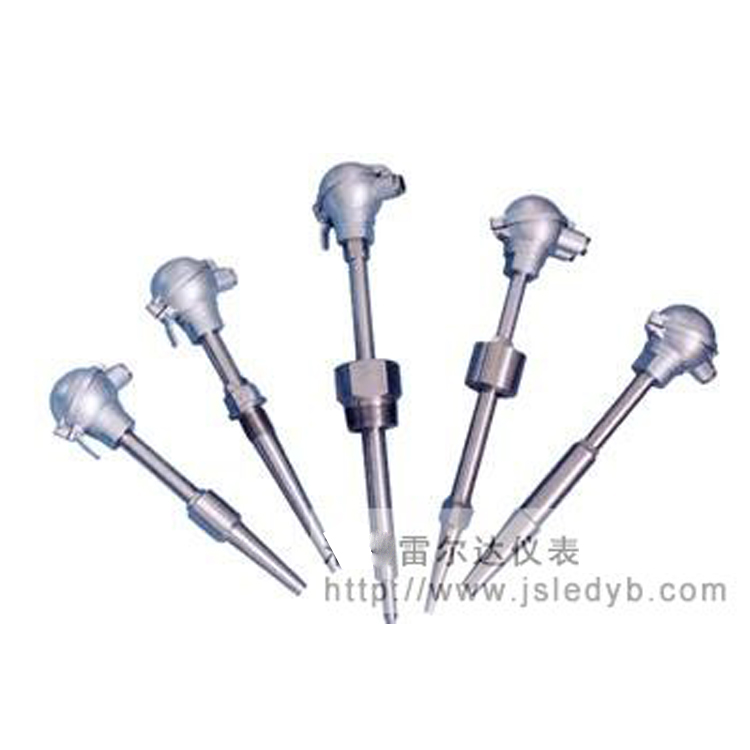

1、热套热电阻技术参数
电气出口：M20x1.5,NPT1/2
连接尺寸：M20x1.5,NPT1/2
防护等级：IP65
2、热套热电阻型号及规格
| 型号 | 分度号 | 测温范围 ℃ | 公称压力 | 流速 | 规格 Lxl |
| WRN-01T WRN2-01T | K | 0-800 | ≤ 30MPa | ≤ 100m/s | —— |
| WRE-01T WRE2-01T | E | 0-600 | |||
| WZP-01T WZP2-01T | Pt100 | -200-+500 | |||
| WRN-624 WRN2-624 | K | 0-800 | ≤ 30MPa | ≤ 80m/s | 绝缘式 |
| WRE-624 WRE2-624 | E | 0-600 | |||
| WZP-624 WZP2-624 | Pt100 | -200-+500 | |||
| WRN-625 WRN2-625 | K | 0-800 | 接壳式 | ||
| WRE-625 WRE2-625 | E | 0-600 | |||
| WRN-012T WRN2-012T | K | 0-800 | ≤ 10MPa | —— | 440x230 640x430 840x630 1340x1130 2500x1200 640x430 3000x1500 3500x1700 |
| WRE-012T WRE2-012T | E | 0-600 | |||
| WZP-012T WZP2-012T | Pt100 | -200-+500 | |||
| WRN-12AT WRN2-12AT | K | 0-800 | |||
| WRE-12AT WRE2-12AT | E | 0-600 | |||
| WZP-12AT WZP2-12AT | Pt100 | -200-+500 | |||
| WRN-013T WRN2-013T | K | 0-800 | ≤ 30MPa | ≤ 100m/s | 380x50 430x100 480x150 |
| WRE-013T WRE2-013T | E | 0-600 | |||
| WZP-013T WZP2-013T | Pt100 | -200-+500 | |||
| WRN-014T WRN2-014T | K | 0-800 | ≤ 10MPa | ≤ 80m/s | 280x50 330x100 380x150 430x200 480x250 530x300 |
| WRE-014T WRE2-014T | E | 0-600 | |||
| WZP-014T WZP2-014T | Pt100 | -200-+500 | |||
| WRN-015T WRN2-015T | K | 0-800 | ≤ 10MPa | ___ | 280x50 330x100 380x150 430x200 480x250 530x300 580x350 630x400 |
| WRE-015T WRE2-015T | E | 0-600 | |||
| WZP-015T WZP2-015T | Pt100 | -200-+500 |
