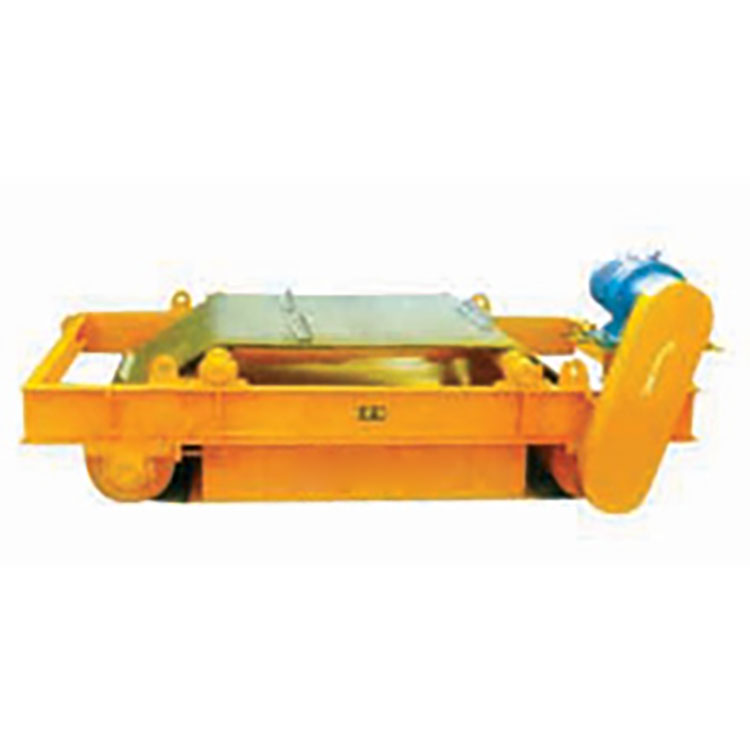

RCYD（C）-T系列永磁自卸式除铁器，采用稀土永磁钕铁硼作为磁源，磁性能稳定，磁路设计，此除铁器磁力强，磁场梯度高，吸力远大于国标除铁器；具有自动纠偏功能的腰鼓形滚筒，全密封铸钢轴承座，保证除铁器在各种恶劣环境下长期无故障工作。其广泛应用于煤矿、码头、火力发电、水泥、建材等行业。
型号/参数/项目 | 适用带宽 | 额定吊高 | 磁场强度 | 驱动电机功率 | 外型尺寸mm | 悬挂尺寸 | 适用带速 | 整机重量 | |||
L | W | H | |||||||||
RCYD(C)-6.5 | T1 | 650 | 200 | 90 | 2.2 | 2160 | 1075 | 795 | 1200x890 | 2.5 | 1300 |
T2 | 120 | 2.2 | 2160 | 1075 | 795 | 1200x890 | 1420 | ||||
T3 | 150 | 2.2 | 2310 | 1075 | 795 | 1200x890 | 1750 | ||||
RCYD(C)-8 | T1 | 800 | 250 | 90 | 2.2 | 2350 | 1280 | 795 | 1300x1090 | 2.5 | 1920 |
T2 | 120 | 2.2 | 2350 | 1280 | 795 | 1300x1090 | 2180 | ||||
T3 | 150 | 3.0 | 2520 | 1253 | 795 | 1300x1090 | 2820 | ||||
RCYD(C)-10 | T1 | 1000 | 300 | 90 | 3.0 | 2660 | 1540 | 950 | 1400x1335 | 2.5 | 2350 |
T2 | 120 | 3.0 | 2660 | 1540 | 950 | 1400x1335 | 2700 | ||||
T3 | 150 | 4.0 | 2760 | 1540 | 950 | 1400x1335 | 3680 | ||||
RCYD(C)-12 | T1 | 1200 | 350 | 90 | 4.0 | 2900 | 1730 | 970 | 1600x1515 | 2.5 | 3250 |
T2 | 120 | 4.0 | 2900 | 1730 | 970 | 1600x1515 | 4100 | ||||
T3 | 150 | 5.5 | 2900 | 1730 | 970 | 1600x1515 | 5150 | ||||
RCYD(C)-14 | T1 | 1400 | 400 | 90 | 4.0 | 2900 | 1730 | 970 | 1900x1750 | 2.5 | 4800 |
T2 | 120 | 5.5 | 3225 | 1980 | 1180 | 1900x1750 | 5600 | ||||
T3 | 150 | 5.5 | 3340 | 1980 | 1180 | 1900x1750 | 7450 | ||||
RCYD(C)-16 | T1 | 1600 | 450 | 90 | 5.5 | 3450 | 2210 | 1180 | 2000x1940 | 2.5 | 6200 |
T2 | 120 | 5.5 | 3450 | 2210 | 1180 | 2000x1940 | 7750 | ||||
T3 | 150 | 7.5 | 3620 | 2210 | 1180 | 2000x1940 | 1038 | ||||
RCYD(C)-18 | T1 | 1800 | 500 | 90 | 7.5 | 3825 | 2570 | 1180 | 2200x2180 | 2.5 | 8500 |
T2 | 120 | 7.5 | 3825 | 2570 | 1180 | 2200x2180 | 10850 | ||||
T3 | 150 | 11.0 | 4025 | 2570 | 1270 | 2200x2180 | 14800 | ||||
RCYD(C)-20 | T1 | 2000 | 550 | 90 | 7.5 | 4275 | 2570 | 1180 | 2400x2450 | 2.5 | 11500 |
T2 | 120 | 11.0 | 4275 | 2570 | 1250 | 2400x2450 | 14270 | ||||
T3 | 150 | 11.0 | 4540 | 2670 | 1250 | 2400x2450 | 19260 | ||||
RCYD(C)-22 | T1 | 2200 | 600 | 90 | 11.0 | 4810 | 2820 | 1250 | 2700x2670 | 2.5 | 13980 |
T2 | 120 | 11.0 | 4810 | 2820 | 1250 | 2700x2670 | 18350 | ||||
T3 | 150 | 15.0 | 4810 | 2820 | 1350 | 2700x2670 | 25080 | ||||
RCYD(C)-24 | T1 | 2400 | 650 | 90 | 15.0 | 5280 | 3180 | 1250 | 3200x2850 | 2.5 | 18760 |
T2 | 120 | 15.0 | 5280 | 3180 | 1350 | 3200x2850 | 23870 | ||||
T3 | 150 | 15.0 | 5280 | 3180 | 1350 | 3200x2850 | 29960 | ||||
