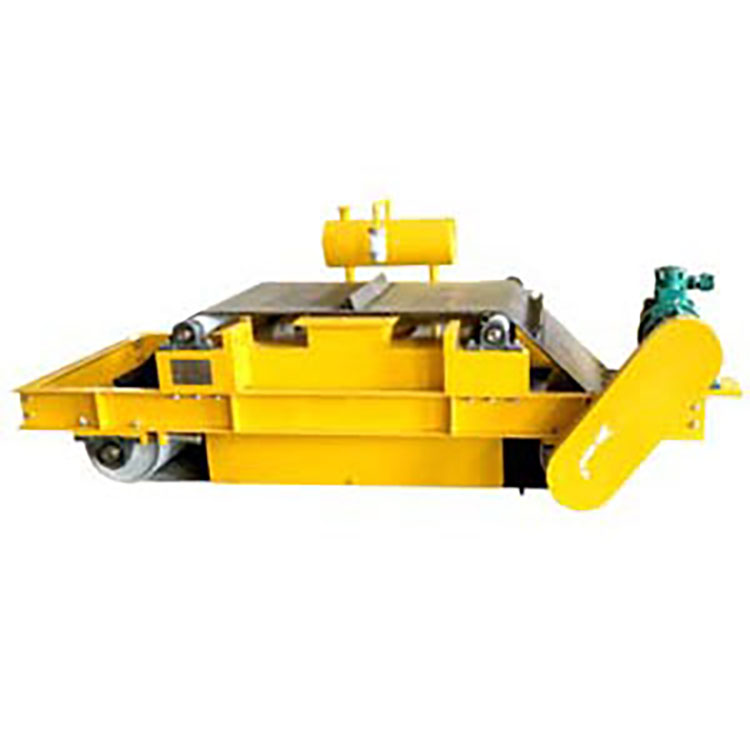

RCDC(D、F)系列自卸式电磁除铁器是在RCDA、RCDB、RCDE系列悬挂式电磁除铁器的基础上增加了驱动电机、滚筒、带刮板的卸铁胶带等组成的卸铁机构。具有磁力大、散热快、防尘、防雨、耐腐蚀、连续工作、无需断电自动卸铁等优点，深得广大用户好评。
主要技术参数：
型号 参数 项目 | 适应带宽 ≤mm | 额定吊高 H≤mm | 物料厚度 ≤mm | 励磁功率 ≤kw | 驱动功率 ≤kw | 外形尺寸mm | ||||
A | B | C | D | E | ||||||
RCDC/D/F-5 | 500 | 150 | 100 | 1.1 | 1.5 | 1900 | 900 | 800 | 650 | 1050 |
RCDC/D/F-6.5 | 650 | 200 | 150 | 1.5 | 2.2 | 2100 | 1000 | 850 | 700 | 1170 |
RCDC/D/F-8 | 800 | 250 | 200 | 2.2 | 3 | 2350 | 1150 | 970 | 810 | 1420 |
RCDC/D/F-10 | 1000 | 300 | 250 | 4.6 | 3 | 3000 | 1500 | 1080 | 810 | 1560 |
RCDC/D/F-12 | 1200 | 350 | 300 | 6.7 | 4 | 3250 | 1400 | 1200 | 940 | 1780 |
RCDC/D/F-14 | 1400 | 400 | 350 | 8.7 | 4 | 3550 | 1945 | 1300 | 940 | 1950 |
RCDC/D/F-16 | 1600 | 450 | 400 | 13 | 5.5 | 3650 | 2010 | 1200 | 940 | 2160 |
RCDC/D/F-18 | 1800 | 500 | 450 | 18 | 5.5 | 3450 | 2400 | 1200 | 940 | 2315 |
