R900703811

比例定向阀 VT-DFP-A-2X/G24K0/0/V

R900703811

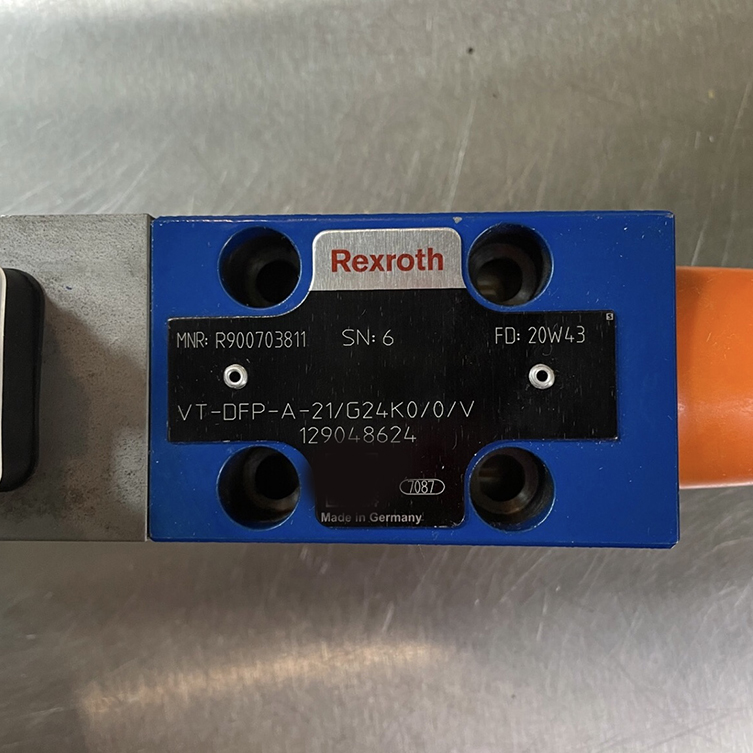

PROPORTIonAL DIRECTIonAL VALVE VT-DFP-A-2X/G24K0/0/V

3 / 3 proportional spool valve, direct operation, electrical position feedback, as the pilot valve of sydfe control system. Type vt-dfp VT-DFP-A-2X/G24K0/0/V Material number: r900703811

describe type VT-DFP Pilot valve

control For external triggered electrons

Piston version one standard

Equipment series 2 times Series 2x

Voltage G24 DC 24 V

Component plug K0 Component plug

K0 (without line connector)

Installation direction of position sensor / solenoid valve 0 Radiation to pump shaft

Additional functions Electronic assembly, options Pressure actual value input seal up V FKM seal

, mineral oil to DIN 51 524 (HL / HLP)
