订货号R900958859

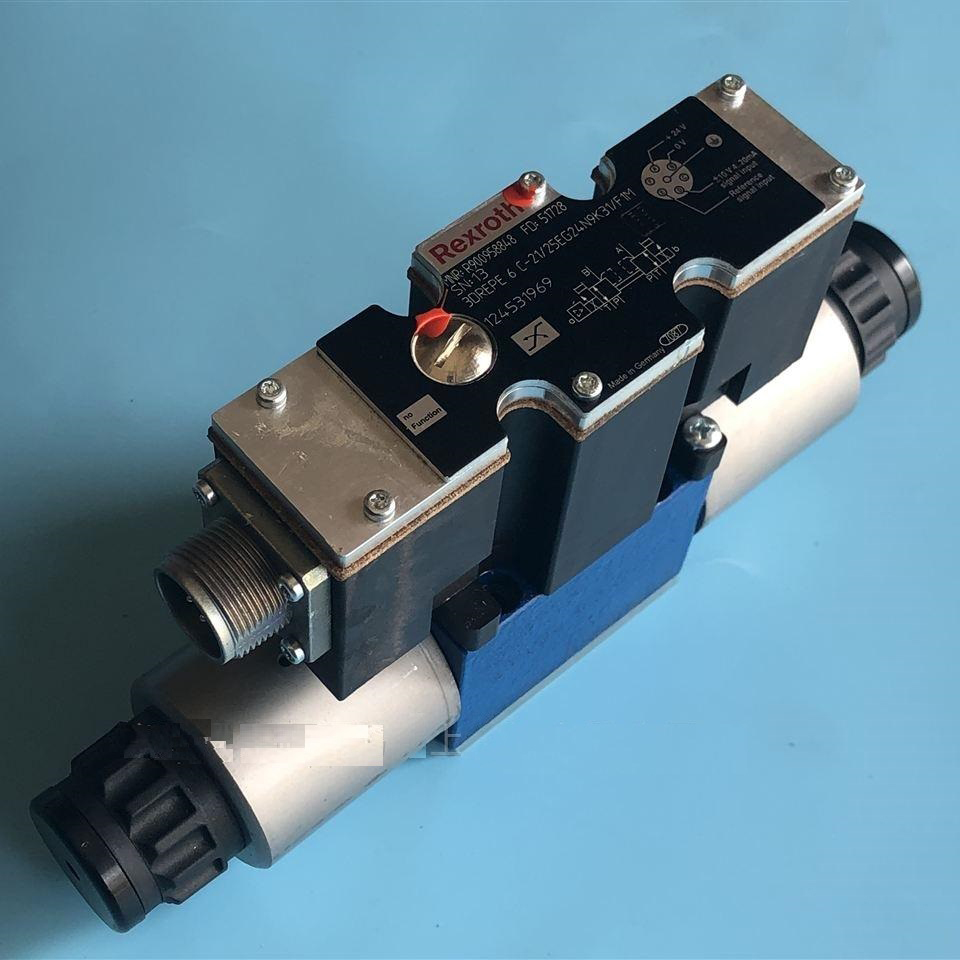

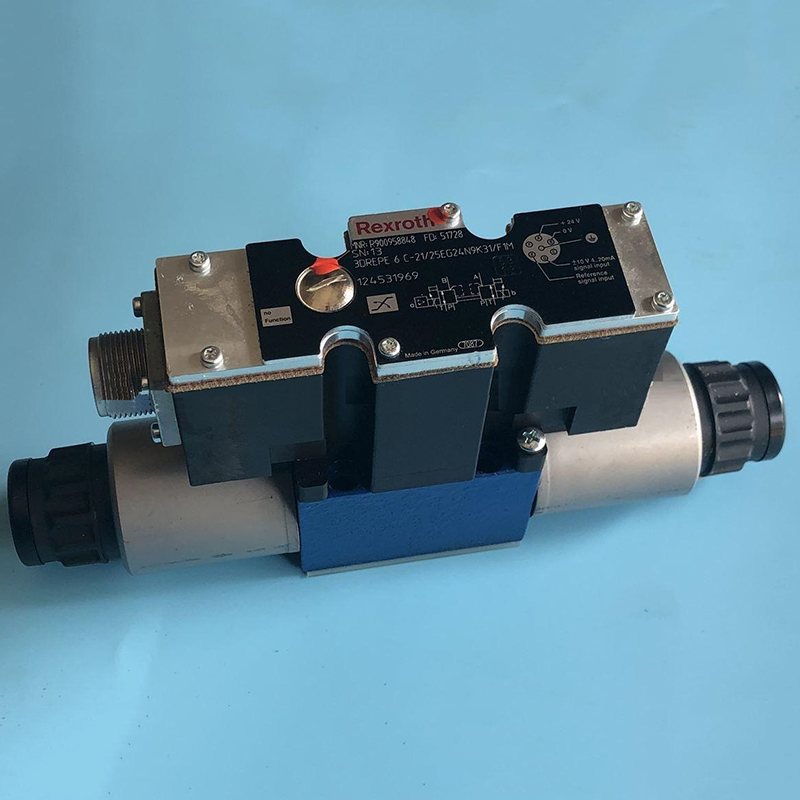

型号：3DREPE 6 C-2X=25EG24N9K31/F1M=00

名称Proportional pressure reducing valve

of 3-way design

Types 3DREP and 3DREPE

Nominal size 6

Series 2X

Maximum operating pressure 100 bar

Maximum flow 15 L/min

Weight:2kg

认证：ISO 4401

Features

Directly controlled proportional valves for the control of the

pressure and direction of a flow

– Actuated via proportional solenoids with central thread and

removable coil

– For subplate mounting:

Porting pattern to DIN 24 340 Teil 2 form A, ISO 4401

and CETOP-RP121H

subplates to catalogue sheet RE 45 052

(separate order), see pages 8 to 10

– Hand override, optional

– Spring centred control spool

Type 3DREP 6 .-2X/..EG24N9K4… with plug-in connectors and

associated control electronics (separate order)

H/A/D 5735/97

– Type 3DREPE with integrated electronics, interface A1

– External control electronics for type 3DREP:

• Analogue amplifier types VT-VSPA2-50-1X/… and

VT-VSPA2-51… in Eurocard format (separate order),

see page 5

• Digital amplifier type VT-VSPD-1-1X/… in Eurocard format

(separate order), see page 5

• Electrical amplifier type VT 11118 of modular design

(separate order), see page 5
