型号/Model

DL85-II

设备参数/ Device parameters

电源电压/Input Voltage

380V/50HZ

装机功率/Installed Capacity

112KW

实耗功率/Power Consumption

90KW

生产能力/Output

300-500Kg/h

尺寸大小/Size

4.7×1.2×2.3m

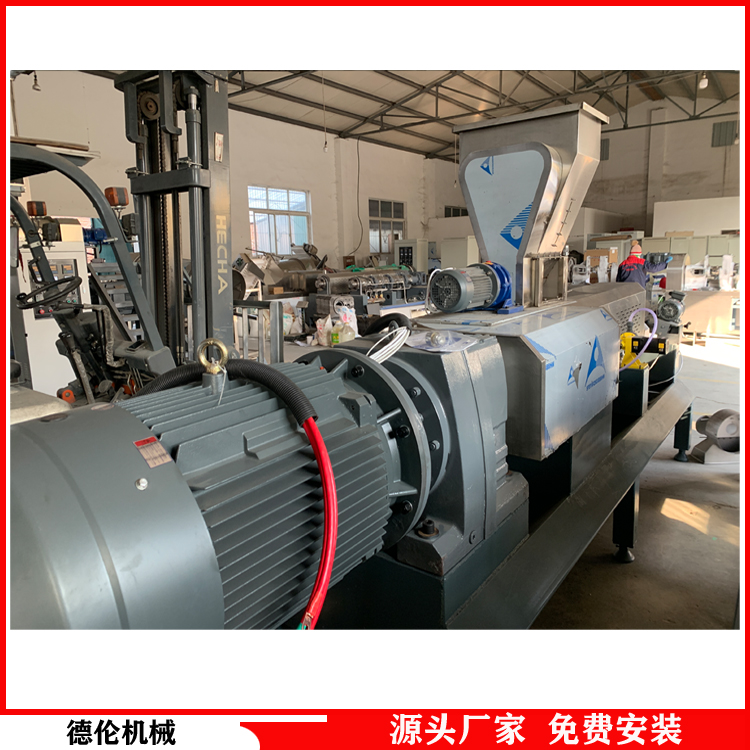

设备简介/Equipment Introduction

该机由供料系统、挤压系统、旋切系统、加热系统、传动系统、控制系统组成。采用先进的螺杆挤压膨化技术，利用高温高压将物料熟化并膨化成型，一次性完成。主机采用变频调速，保证生产过程的稳定性。产品花色、品种多样、外表美观、自然逼真、质感细腻、原料使用广泛

Machine consists of feeding system, extruding system, peeling systems, heating system, transmission system, control system. Advanced screw extrusion technology, the use of high temperature and pressure curing and extrusion molding the material, once completed. Host with frequency control, to ensure the stability of the production process. Product color, species diversity, looks beautiful, natural and realistic, delicate texture, materials widely used.
