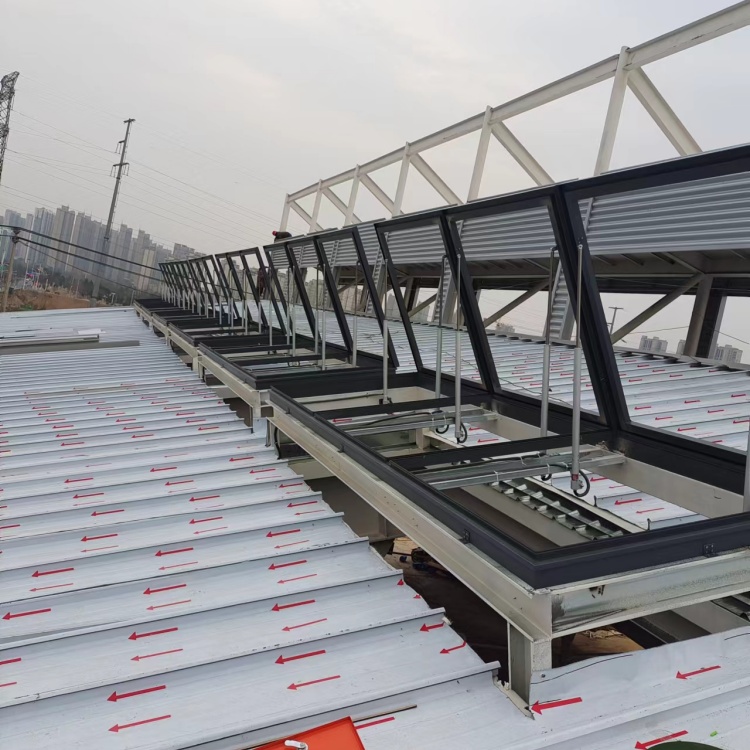

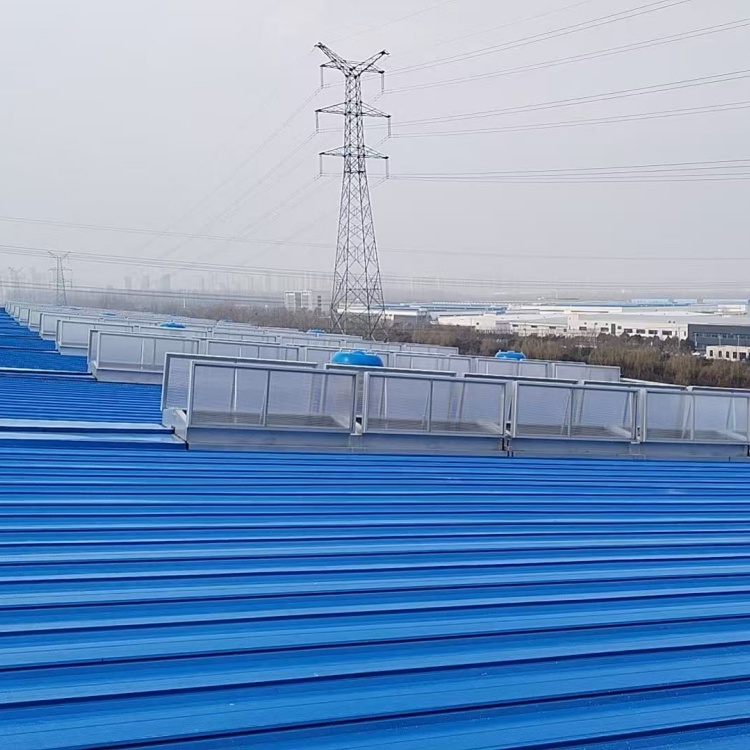

一字型电动采光排烟天窗
One - type electric daylighting and smoke extraction skylight
外观为平行，高低度有效减少风压阻力，天窗顶部为采光板，有效增加室内亮度，开启电机设计成24V安全电压，可连接消防联动控制系统及风、雨、烟感应器，适用于生产车间；大厅；体育场。
The appearance is parallel, the high and low degree effectively reduces the wind pressure resistance, the roof of the skylight is the light board, effectively increases the indoor brightness, open the motor is designed as 24V safety voltage, can be connected to the fire linkage control system and wind, rain, smoke sensor, suitable for the production workshop; The hall; The stadium.
一字型电动采光排烟天窗选用表
One - letter type electric lighting exhaust smoke skylight selection table
窗型号Window type | 洞口尺寸 Hole size WXL(mm) | 窗外形尺寸 Window Dimensions WXL(mm) | 窗体高度 Form heigh（mm） | 窗体重量 Form weigh（kg） | 有效开口面积 Effective orifice area (㎡） | ||
通用型控制式 Universal controlled | 智能型控制式 Intelligent controlled | 智能型网络控制式 Intelligent network controlled | |||||
KBPC2T-1015 | KBPC2Z-1015 | KBPC2W-1015 | 1000*1500 | 1256*1756 | 270 | 62.5 | 1.305 |
KBPC2T-1020 | KBPC2Z-1020 | KBPC2W-1020 | 1000*2000 | 1256*2256 | 270 | 71.7 | 1.740 |
KBPC2T-1215 | KBPC2Z-1215 | KBPC2W-1215 | 1200*1500 | 1456*1756 | 270 | 65.9 | 1.605 |
KBPC2T-1220 | KBPC2Z-1220 | KBPC2W-1220 | 1200*2000 | 1456*2256 | 270 | 75.41 | 2.140 |
KBPC2T-1225 | KBPC2Z-1225 | KBPC2W-1225 | 1200*2500 | 1456*2756 | 270 | 84.81 | 2.675 |
KBPC2T-1520 | KBPC2Z-1520 | KBPC2W-1520 | 1500*2000 | 1756*2256 | 270 | 80.7 | 2.740 |
KBPC2T-1525 | KBPC2Z-1525 | KBPC2W-1525 | 1500*2500 | 1756*2756 | 270 | 90.4 | 3.420 |
KBPC2T-1530 | KBPC2Z-1530 | KBPC2W-1530 | 1500*3000 | 1756*3256 | 270 | 100.4 | 4.110 |
