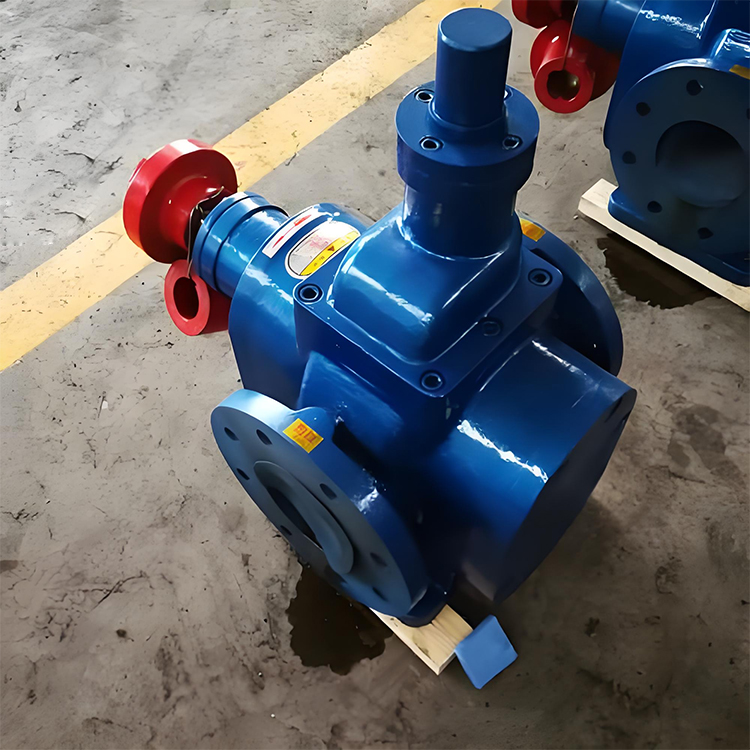

YCB磁力圆弧齿轮泵泵适用于石化行业工艺流程中输送不含固体颗粒和纤维,温度不高于250℃,粘度为5～1500cst的有润滑性的流体.对于有腐蚀性或对卫生要求比较高的场合可以选用不锈钢材质的泵。齿轮的啮合为一点连续接触的滚动式啮合,无流量脉动,运转平稳,振动小,噪声低.该产品 应用于船舶,电力,冶金,粮油,食品,石油,化工等各行业。
YCB磁力圆弧齿轮泵技术规范：流量范围: 0.6m 3 /H ～ 80m 3 /H;额定排出压力: 0.6MPa ;高使用温度: < 250℃。
YCB磁力圆弧齿轮泵应用范围:在输油系统中可用作传输,增压泵,在燃油系统中可用作输送,加压,喷射的燃油泵,在液压传动系统中可用作提供液压动力的液压泵,在工业领域中,均可作为机械设备的润滑油泵用。
YCB磁力圆弧齿轮泵结构点：
（1）泵内所有运转部件利用输送介质润滑,
（2）设有阀超载保护,
（3）磁传动装置采用稀土永磁材料,全密封,无泄露。
型号 | 流量 | 转速 | 排出压力 | 必需汽 | 效率 | 电动机 | ||
m3/h | 频率 | 功率KW | 型号 | |||||
YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 32 | 50 | 0.75 | Y90S-6 |
1.0 | 1390 | 50 | 0.75 | Y80L2-4 | ||||
0.7 | 1130 | 60 | 0.75 | Y90S-6 | ||||
1.2 | 1710 | 60 | 0.75 | Y80L2-4 | ||||
YCB0.6-1.6 | 0.6 | 910 | 1.6 | 7.0 | 70 | 50 | 1.1 | Y90L-6 |
1.0 | 1400 | 50 | 1.5 | Y90L-4 | ||||
0.7 | 1130 | 60 | 1.1 | Y90L-6 | ||||
1.2 | 1710 | 60 | 1.1 | Y90S-4 | ||||
YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 42 | 50 | 0.75 | Y90S-6 |
2.5 | 1400 | 50 | 1.1 | Y90S-4 | ||||
1.9 | 1130 | 60 | 1.1 | Y90L-6 | ||||
3.0 | 1710 | 60 | 1.5 | Y90L-4 | ||||
YCB1.6-1.6 | 1.6 | 940 | 1.6 | 7.0 | 71 | 50 | 2.2 | Y112M-6 |
2.5 | 1440 | 50 | 4 | Y112M-4 | ||||
1.9 | 1150 | 60 | 2.2 | Y112M-6 | ||||
3.0 | 1750 | 60 | 4 | Y112M-4 | ||||
YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
5.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
4.0 | 1150 | 60 | 1.5 | Y100L-6 | ||||
6.0 | 1730 | 60 | 2.2 | Y100L1-4 | ||||
YCB3.3-1.6 | 3.3 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
5.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
4.0 | 1170 | 60 | 4 | Y132M1-6 | ||||
6.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
6.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
4.8 | 1150 | 60 | 2.2 | Y112M-6 | ||||
7.2 | 1730 | 60 | 3 | Y100L2-4 | ||||
YCB4-1.6 | 4.0 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
6.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
4.8 | 1170 | 60 | 5.5 | Y132M-6 | ||||
7.2 | 1750 | 60 | 7.5 | Y132M-4 | ||||
YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 61 | 50 | 3 | Y132S-6 |
12.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
9.6 | 1170 | 60 | 4 | Y132M1-6 | ||||
14.4 | 1750 | 60 | 5.5 | Y132S-4 | ||||
YCB8-1.6 | 8.0 | 970 | 1.6 | 7.0 | 75 | 50 | 11 | Y160L-6 |
12.0 | 1460 | 50 | 15 | Y160L-4 | ||||
9.6 | 1170 | 60 | 11 | Y160L-6 | ||||
14.4 | 1760 | 60 | 15 | Y160L-4 | ||||
YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 62 | 50 | 4 | Y132M1-6 |
15.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
12.0 | 1170 | 60 | 5.5 | Y132M2-6 | ||||
18.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
YCB10-1.6 | 10.0 | 970 | 1.6 | 7.0 | 76 | 50 | 11 | Y160L-6 |
15.0 | 1470 | 50 | 15 | Y160L-4 | ||||
12.0 | 1170 | 60 | 11 | Y160L-6 | ||||
18.0 | 1770 | 60 | 18.5 | Y160L-4 | ||||
YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 68 | 50 | 7.5 | Y160M-6 |
24.0 | 1170 | 60 | 7.5 | Y160M-6 | ||||
YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 69 | 50 | 11 | Y160L-6 |
30.0 | 1170 | 60 | 11 | Y160L-6 | ||||
YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 70 | 50 | 11 | Y160L-6 |
36.0 | 1170 | 60 | 11 | Y160L-6 | ||||
YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 72 | 50 | 15 | Y180L-6 |
48.0 | 1180 | 60 | 15 | Y180L-6 | ||||
YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 72 | 50 | 22 | Y200L2-6 |
60.0 | 1180 | 60 | 22 | Y200L2-6 | ||||
