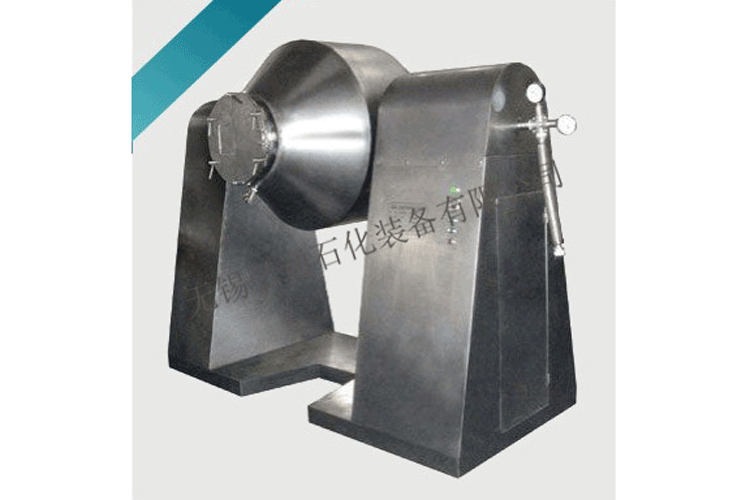

SZG回转真空干燥机（双锥）

产品概述/Product overview

       SZG双锥真空干燥机是干燥装置，双锥真空采用皮带--链条两弹性联接方式，因而设备运行平稳。特别设计的工艺，充分体现了两支轴的良好同心，热媒及真空系统均采用可靠的机械密封技木的旋转接头。

       SZG rotary vacuum dryer is a drying device of new generation developed by our factory based on technologies of similar domestic products. The two cone-vacuum adopts belt-chain double elastic connection method, therefore the equipment can run in a stable manner. The specially designed process fully shows the good concentricity of the two shafts. Thermal media and vacuum system all adopt reliable mechanical sealing or rotating connector of American Technology.

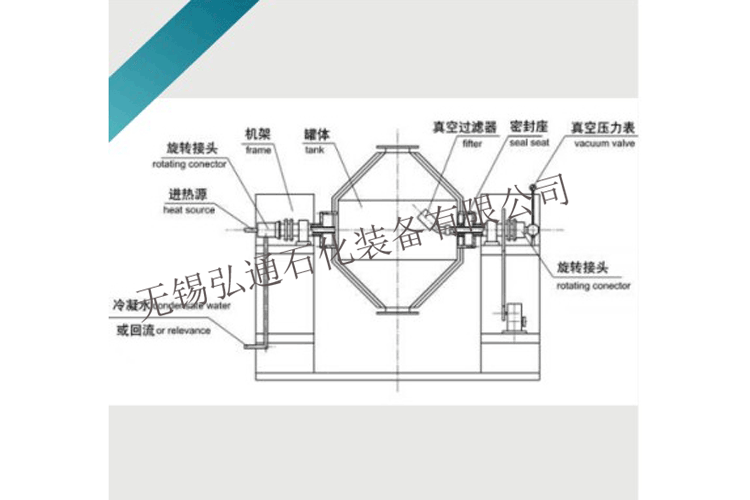

工作原理 /operating principle

       在密闭的夹层中通入热能源（如热水，低压蒸汽或导热油）热量经内壳传给被干燥物料。在动力驱动下，灌体作缓慢旋转，罐内物科不断地混合从而达到强化干燥的目的。

       物料处于真空状态，蒸汽压下降使物料表面的水份（容剂）达到饱和状态而蒸发了，并由真空泵及时排出回收。物料内部的水份（溶剂）不断的向表面渗透、蒸发、排出、三个过程不断进行，物料在短时间内达到干燥目的。

       Supply heat energy (such as hot water, steam of low pressure or heat conduction oil) into the closed interlayer. The heat will be transferred to materials to be dried by inner shell. The tank body will be driven to rotate slowly. The materials inside the tank are mixed to strength drying purpose.

       The materials are under vacuum status. Steam pressure will decrease which make the water on material surface (solvent) become saturated and then evaporate. The water will be discharged and recycled by the vacuum pump immediately. Water (solvent) inside the material is permeated, evaporated and discharged from the surface. The said three processes happen constantly and the materials will be dried in a short period.

产品特点/Product features

       容器不断旋转，物料加热表面得以更新；

       Constant rotation of the vessel keeps renewal of heating surface of the materials;

       间接加热，不会被污染；

       Indirect heating gives no pollution;

       热效率高，比一般烘箱提高2倍以上；

       High heat efficiency which is over 2 times than the common oven;

       容器旋转速可在3--13rpm范围内调节；

       The rotation speed of the vessel can be adjusted within 3-13rpm;

       恒温控制温度由数显仪显示；

       Thermostatical control temperature will be shown on the digital display;

       温度可在30-160度之间调节，温筹2度以内。

       The temperature can be adjusted between 30-160 degree and temperature difference shall be within 2 degree.

主要用途/main application

       本设备主要用于化工、食品等行业进行以下物料干噪；

       This equipment is mainly used for drying of following materials in pharmaceutical, chemical, food and other industries;

       回收残余挥发物的物料；

       Materials which are used to recycle residual volatiles;

       回收干燥时排出的蒸汽的物料；

       Materials which are used to recycle steam discharged during drying process

       强烈刺激、有毒性物料；

       Material with strong irritation or is toxic;

       不能承受高温的物料；

       Materials cannot resist to high temperature;

       容易痒化的物料；

       Materials which are easy to be oxidized;

       对结晶体不允许破坏的物料。

       Materials which the crystals are not allowed to be destroyed.

       本机是主机设备，需配备加热系统，真空泵，冷凝器辅助装置。（本厂可代为用户配备有关设备，请订货说明）

       This machine is the main machine which needs to be equipped with heating system, vacuum pump and auxiliary device of the condenser. (Our factory can equip all the related equipments for you. Please note during ordering)
