ZR-KVVP-0.45/0.75KV-4*1.5应用范围：加工机器设备连接电气部件内部控制连接线，监控电路，工业机床设备线路。

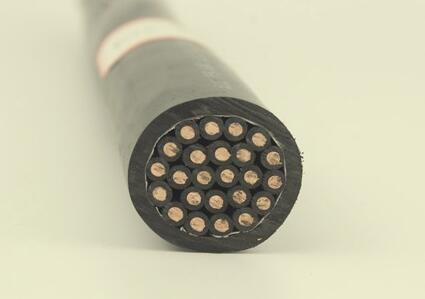

KVVP-450/750V-4*1.5控制电缆电缆结构:
导 体： 裸铜丝，符合IEC60228标准，第1-2类
线芯绝缘： PVC-聚氯乙烯
线芯颜色： 黑色线芯，白色编码连续编号，3芯以上可带黄/绿双色线
线芯结构： 分层
隔离材料： PP

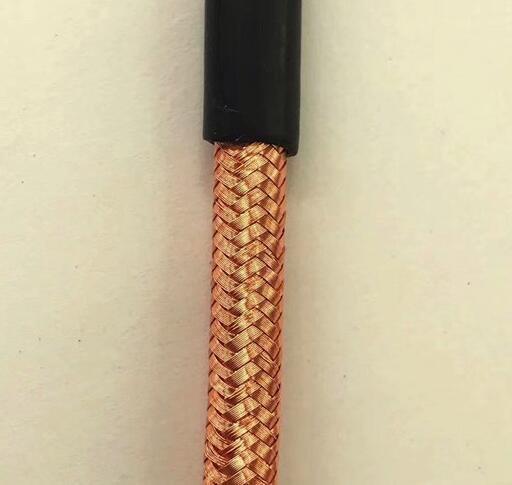

屏 蔽： 铜丝编织，及镀锡铜丝编织
护套材料： PVC聚氯乙烯
护套颜色： 黑色
ZR-KVVP-0.45/0.75KV-4*1.5产品特点：
执行标准：GB/T9330.2-2008
额定电压：450/750V
温度范围：-15℃-70℃
实验电压：3000V
弯曲半径：固定安装6电缆直径，
阻燃特性：阻燃自熄符合 GB/T18380.12(IEC60332-1)
无有害物质：符合ROHS
KVVP-450/750V-2*0.5 | ZR-KVVP-450/750V-2*0.5 | NH-KVVP-450/750V-2*0.5 |
KVVP-450/750V-2*0.75 | ZR-KVVP-450/750V-2*0.75 | NH-KVVP-450/750V-2*0.75 |
KVVP-450/750V-2*1.0 | ZR-KVVP-450/750V-2*1.0 | NH-KVVP-450/750V-2*1.0 |
KVVP-450/750V-2*1.5 | ZR-KVVP-450/750V-2*1.5 | NH-KVVP-450/750V-2*1.5 |
KVVP-450/750V-2*2.5 | ZR-KVVP-450/750V-2*2.5 | NH-KVVP-450/750V-2*2.5 |
KVVP-450/750V-2*4.0 | ZR-KVVP-450/750V-2*4.0 | NH-KVVP-450/750V-2*4.0 |
KVVP-450/750V-2*6.0 | ZR-KVVP-450/750V-2*6.0 | NH-KVVP-450/750V-2*6.0 |
KVVP-450/750V-3*0.5 | ZR-KVVP-450/750V-3*0.5 | NH-KVVP-450/750V-3*0.5 |
KVVP-450/750V-3*0.75 | ZR-KVVP-450/750V-3*0.75 | NH-KVVP-450/750V-3*0.75 |
KVVP-450/750V-3*1.0 | ZR-KVVP-450/750V-3*1.0 | NH-KVVP-450/750V-3*1.0 |
KVVP-450/750V-3*1.5 | ZR-KVVP-450/750V-3*1.5 | NH-KVVP-450/750V-3*1.5 |
KVVP-450/750V-3*2.5 | ZR-KVVP-450/750V-3*2.5 | NH-KVVP-450/750V-3*2.5 |
KVVP-450/750V-3*4.0 | ZR-KVVP-450/750V-3*4.0 | NH-KVVP-450/750V-3*4.0 |
KVVP-450/750V-3*6.0 | ZR-KVVP-450/750V-3*6.0 | NH-KVVP-450/750V-3*6.0 |
KVVP-450/750V-4*0.5 | ZR-KVVP-450/750V-4*0.5 | NH-KVVP-450/750V-4*0.5 |
KVVP-450/750V-4*0.75 | ZR-KVVP-450/750V-4*0.75 | NH-KVVP-450/750V-4*0.75 |
KVVP-450/750V-4*1.0 | ZR-KVVP-450/750V-4*1.0 | NH-KVVP-450/750V-4*1.0 |
KVVP-450/750V-4*1.5 | ZR-KVVP-450/750V-4*1.5 | NH-KVVP-450/750V-4*1.5 |
KVVP-450/750V-4*2.5 | ZR-KVVP-450/750V-4*2.5 | NH-KVVP-450/750V-4*2.5 |
KVVP-450/750V-4*4.0 | ZR-KVVP-450/750V-4*4.0 | NH-KVVP-450/750V-4*4.0 |
KVVP-450/750V-4*6.0 | ZR-KVVP-450/750V-4*6.0 | NH-KVVP-450/750V-4*6.0 |
KVVP-450/750V-5*0.5 | ZR-KVVP-450/750V-5*0.5 | NH-KVVP-450/750V-5*0.5 |
KVVP-450/750V-5*0.75 | ZR-KVVP-450/750V-5*0.75 | NH-KVVP-450/750V-5*0.75 |
KVVP-450/750V-5*1.0 | ZR-KVVP-450/750V-5*1.0 | NH-KVVP-450/750V-5*1.0 |
KVVP-450/750V-5*1.5 | ZR-KVVP-450/750V-5*1.5 | NH-KVVP-450/750V-5*1.5 |
KVVP-450/750V-5*2.5 | ZR-KVVP-450/750V-5*2.5 | NH-KVVP-450/750V-5*2.5 |
KVVP-450/750V-5*4.0 | ZR-KVVP-450/750V-5*4.0 | NH-KVVP-450/750V-5*4.0 |
KVVP-450/750V-5*6.0 | ZR-KVVP-450/750V-5*6.0 | NH-KVVP-450/750V-5*6.0 |
KVVP-450/750V-6*0.5 | ZR-KVVP-450/750V-6*0.5 | NH-KVVP-450/750V-6*0.5 |
KVVP-450/750V-6*0.75 | ZR-KVVP-450/750V-6*0.75 | NH-KVVP-450/750V-6*0.75 |
KVVP-450/750V-6*1.0 | ZR-KVVP-450/750V-6*1.0 | NH-KVVP-450/750V-6*1.0 |
KVVP-450/750V-6*1.5 | ZR-KVVP-450/750V-6*1.5 | NH-KVVP-450/750V-6*1.5 |
